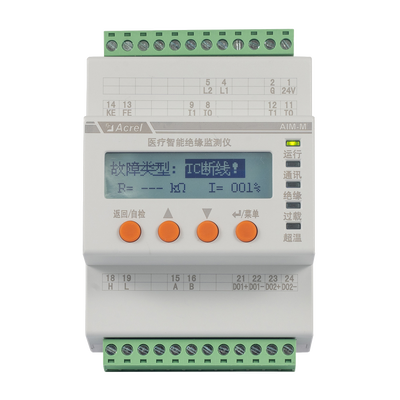

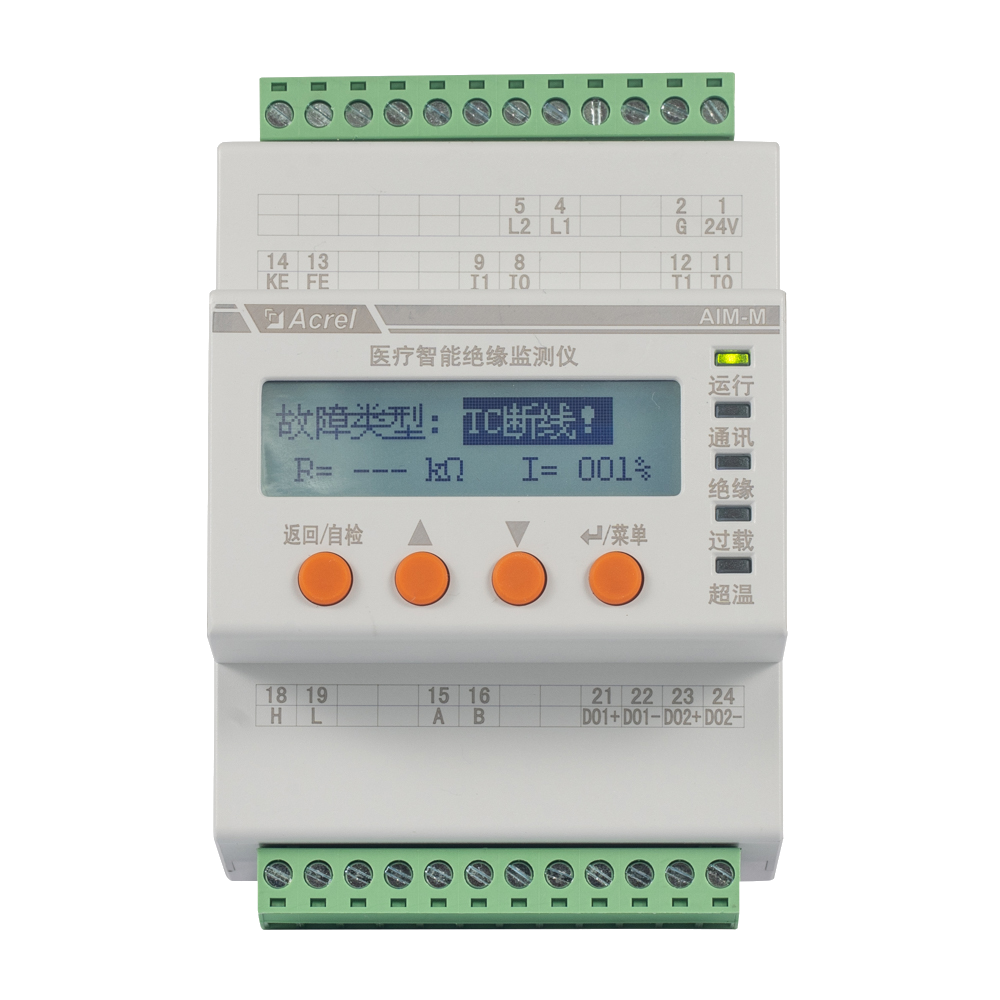

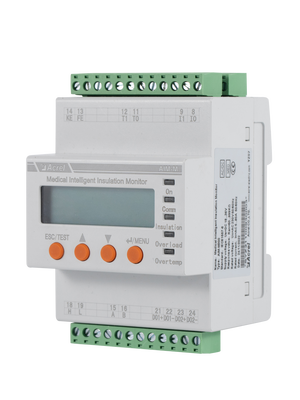

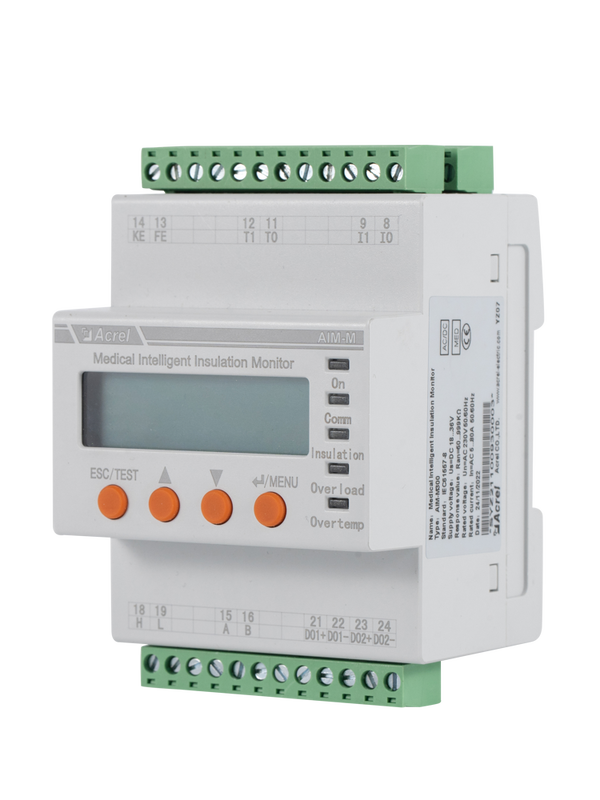

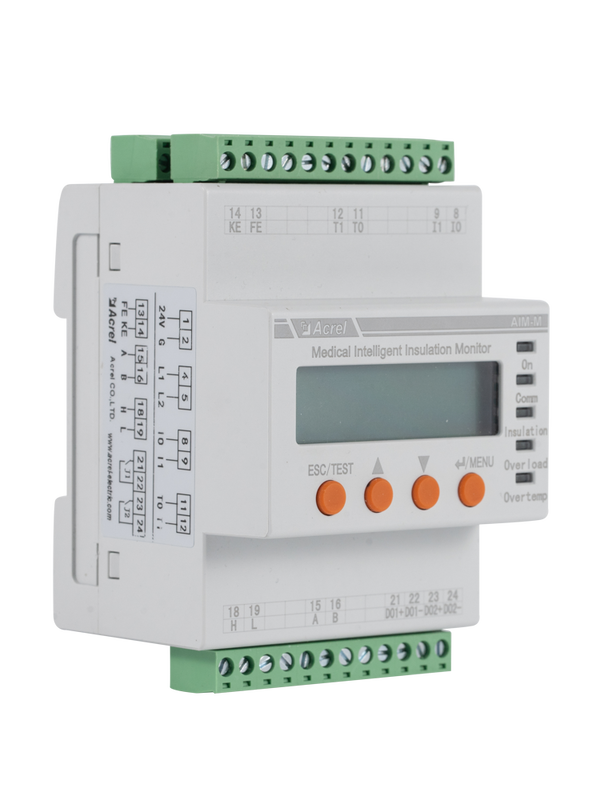

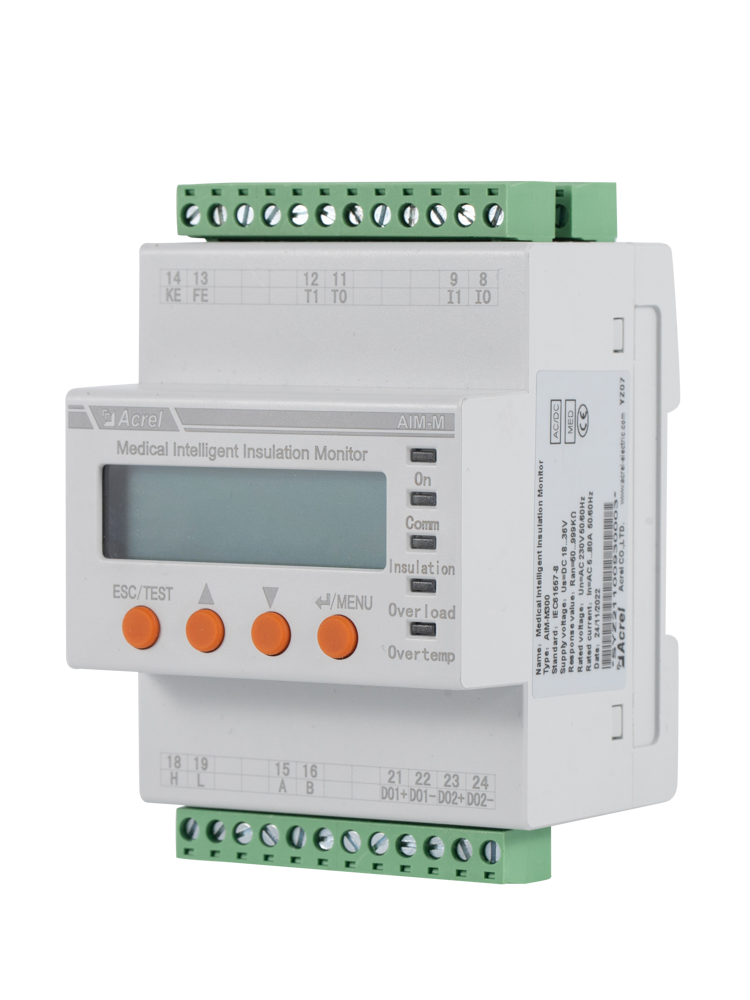

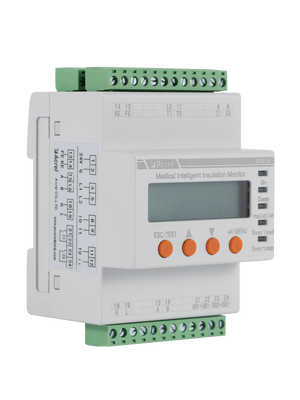

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
Hubungi sekarang

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room

Kuantitas min Order : 1 Harga : 1714 USD/unit
Kemasan rincian : kemasan karton 33*24*18cm Waktu pengiriman : 7 hari kerja
Syarat-syarat pembayaran : T/T Menyediakan kemampuan : 100 buah per hari
Tempat asal: jiangsu Nama merek: Acrel
Sertifikasi: CE/ IEC/ DIN EN 61577-8 Nomor model: TUJUAN-M300

Informasi Detail
Indikator LED: Aktif, Isolasi, Kelebihan Beban, Suhu Berlebih Aplikasi: pemantauan isolasi untuk sistem TI medis
Komunikasi: RS485 (MODBUS-RTU) + BISA

Deskripsi Produk

The AIM-M300 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M300 is designed to support insulation fault location.AIM-M300 series medical intelligent monitoring device adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is suitable for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.

Basic Specification:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 0

Dimension:

                                                      Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 1

Diagram:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 2Function:

1. Functions of real-time monitoring and fault alarming of the grounding insulation resistance,transformer load current and transformer winding temperature of the monitored IT system;
2. Locating current injector for insulation fault location systems;
3. Real-time monitor the line disconnection fault, current sensor disconnectiobn,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2s after the fault occurs. when the fault occurs;
4. Relay alarm output, LED alarm indication and other faults indication functions;
5. Two kinds of fieldbus communication technology, which are used for centralized alarm and display device, insulation fault locator and upper computer management software communications, and monitoring the operation status of IT system in real time.
6. Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.

Label:

230V 50Hz Fase Tunggal Kilowatt Hour Meter

RS485 Modbus 3 Phase Digital Energy Meter

230V 50Hz Din Rail Smart Meter
