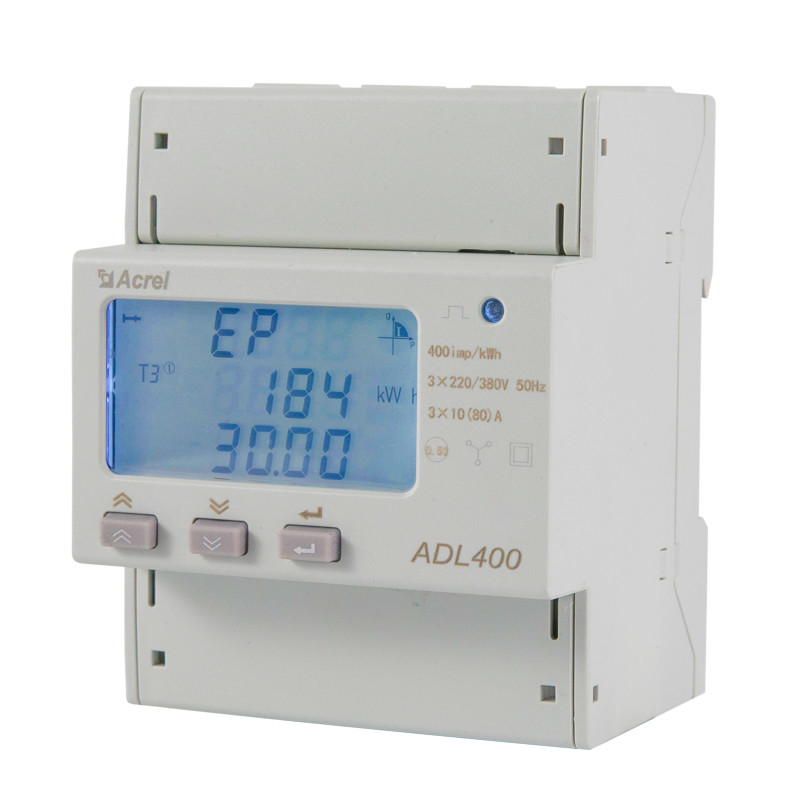

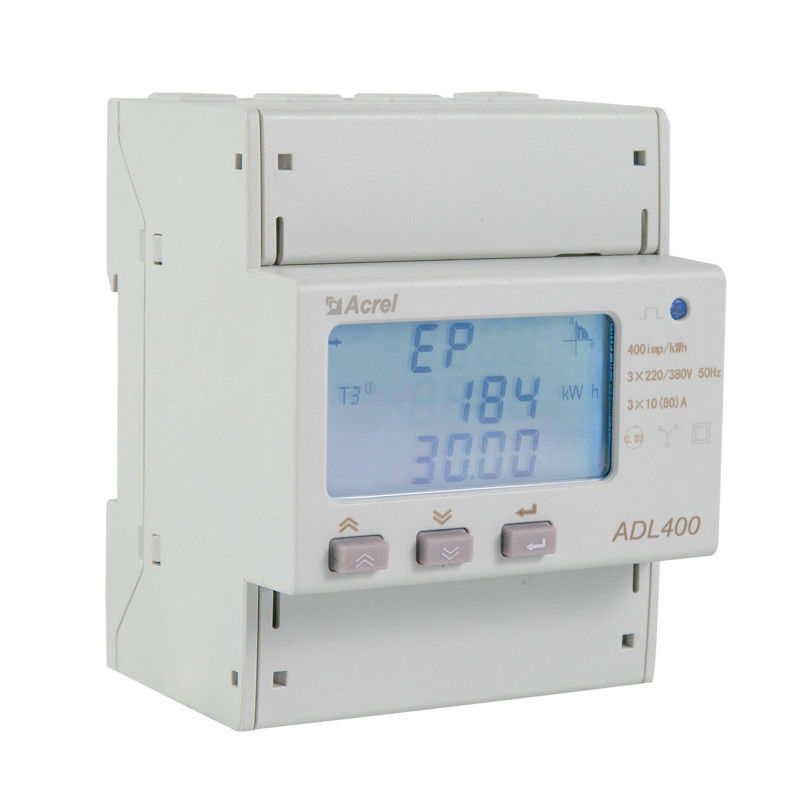

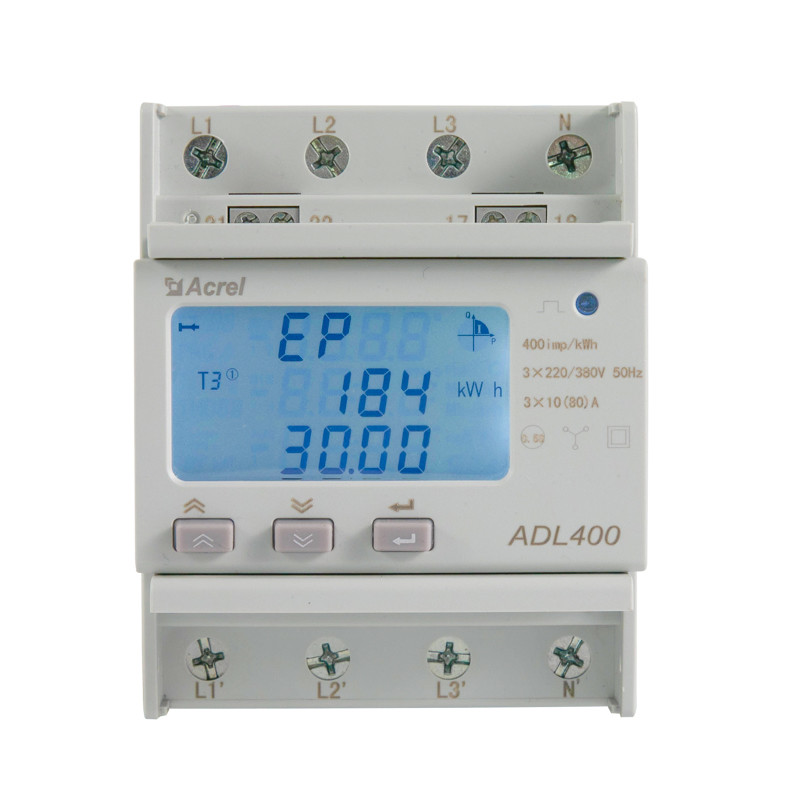

ADL400 Din Rail Three Phase Multi-Function Energy Meter
ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter
Hubungi sekarang

ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter

Minimum Order Quantity : 1 Harga : USD+15-80+pcs
Packaging Details : 48*45.5*20 Delivery Time : 5-8 work days
Payment Terms : L/C, T/T Supply Ability : 6000000+pcs+per year
Place of Origin: YES Nama merek: Acrel
Sertifikasi: ISO/CE Model Number: ADL400

Deskripsi Produk

ADL400 din rel energi meter mengadopsi DIN35mm din rel instalasi dengan tampilan LCD, itu dapat mengukur parameter listrik dan memiliki output energi pulsa, komunikasi RS485,yang memiliki keuntungan dari ukuran kecil, presisi tinggi, keandalan yang baik dan instalasi yang nyaman.



● AC 3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

● U,I,P,Q,S,PF,kWh,kvarh

● RS485 ((MODBUS-RTU)

● LCD display

● Kelas 0.5S kWh, Kelas 2 kVarh

Karakteristik

ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 0 ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 1 ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 2
Komunikasi Tampilan Berkualitas U dan I
RS485
(Modbus-RTU)

Tampilan LCD 12 digit

U, I, P, Q, PF, kWh dan konsumsi energi lainnya

Ukuran daya (999999.99kWh)

AC 3×100V, 3×380V, 3×57.7/100V

3×220/380V; 3×1(6)A, 3×10(80)A



Layar LCD

新建 DOCX 文档691.png



Fungsi



Keakuratan

KWh: Kelas 0.5S,kVarh:Kelas 2



Frekuensi

50/60HZ ((Optional),range: 45 ~ 65HZ



Keluarnya pulsa

Kekuatan output pulsa kWh/kvarh



Konsumsi

< 1VA ((Fase tunggal)

 ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 4



ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 5

Pemasangan

DIN 35mm



Dimensi ((L*W*H)

90*72*65mm



Switch relay

Relay penguncian magnetik ((ADL3000-E built-in)



Jam

≤ 0,5 s/hari



Saat mulai

Sambungan langsung: 0.01

Hubungkan melalui CT: 0.001

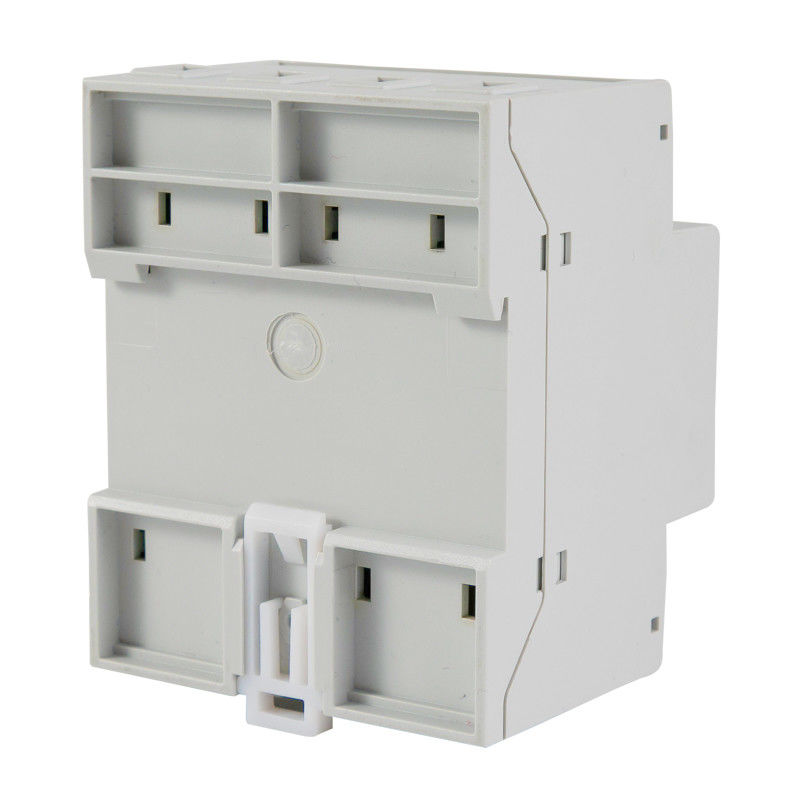

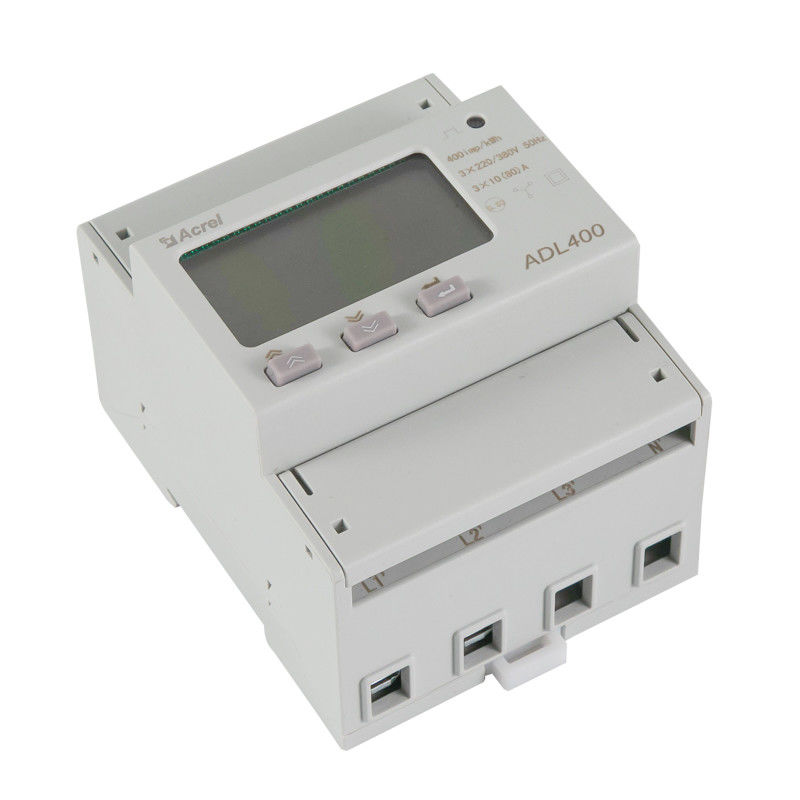

Penampilan



ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 6 ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 7 ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 8



Kabel

ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 9

Koneksi khas

ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 10

ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 11

ADL400 Din Rail Tiga Fase Multi-Fungsi Energy Meter 12
